Wire Rope and Rigging

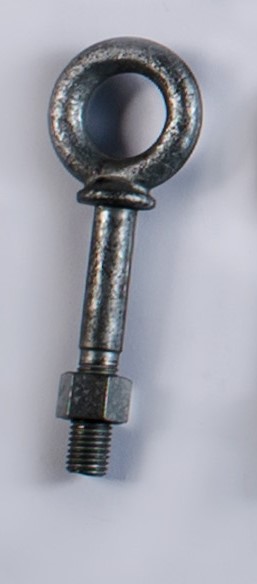

Shoulder Pattern Galvanized Eyebolt (Imported)

Catalog (SKU) Number: EYEBOLT IMP SHLDR

  • Generally used as anchor points in rigging applications.
  • Shouldered eye bolts can be used for either straight line or angular pulling in rigging applications, but are the preferred eye bolt for angular pulls since the shouldered design helps maintain the strength of the eye and the shank from bending or deforming. It’s important to note that loading at an angle significantly reduces a bolt’s rated capacity.
  • Galvanized to ASTM A-153 specifications.
  • Design factor is 5:1.
  • Made of drop forged carbon steel.
  • Other sizes, stainless steel, and domestic available upon request.

Request Product Information

Please fill out the form below and we will get back to you as soon as we can.

*
*
*
*
*

Download Spec Sheet
  • Product Specifications
  • Related Products

Product Specifications

SHOULDER PATTERN GALVANIZED EYEBOLT (IMPORTED)
PART NUMBER SIZE (IN) WORKING LOAD LIMIT (LBS) WEIGHT EACH (LBS) DIMENSIONS
A B C D E F G H I
IEB-41 1/4 X 2 650 0.066 0.2500 0.5000 0.8800 0.1900 1.5000 2.0000 2.9400 0.5000 0.4700
IEB-42 1/4 X 4 650 0.091 0.2500 0.5000 0.8800 0.1900 2.5000 4.0000 4.9400 0.5000 0.4700
IEB-43 5/16 X 2-1/4 1,200 0.125 0.3100 0.6200 1.1200 0.2500 1.5000 2.2500 3.5000 0.6900 0.5600
IEB-44 5/16 X 4-1/4 1,200 0.188 0.3100 0.6200 1.1200 0.2500 2.5000 4.2500 5.5000 0.6900 0.5600
IEB-45 3/8 X 2-1/2 1,550 0.214 0.3800 0.7500 1.3800 0.3100 1.5000 2.5000 3.9700 0.7800 0.6600
IEB-46 3/8 X 4-1/2 1,550 0.253 0.3800 0.7500 1.3800 0.3100 2.5000 4.5000 5.9700 0.7800 0.6600
IEB-47 1/2 X 3-1/4 2,600 0.426 0.5000 1.0000 1.7500 0.3800 1.5000 3.2500 5.1200 1.0000 0.9100
IEB-48 1/2 X 6 2,600 0.568 0.5000 1.0000 1.7500 0.3800 3.0000 6.0000 7.8800 1.0000 0.9100
IEB-49 5/8 X 4 5,200 0.686 0.6200 1.2500 2.2500 0.5000 2.0000 4.0000 6.4400 1.3100 1.1200
IEB-50 5/8 X 6 5,200 1.025 0.6200 1.2500 2.2500 0.5000 3.0000 6.0000 8.4400 1.3100 1.1200
IEB-51 3/4 X 4-1/2 7,200 1.445 0.7500 1.5000 2.7500 0.6200 2.0000 4.5000 7.4400 1.5600 1.3800
IEB-52 3/4 X 6 7,200 1.675 0.7500 1.5000 2.7500 0.6200 3.0000 6.0000 8.9400 1.5600 1.3800
IEB-53 7/8 X 5 10,600 2.250 0.8800 1.7500 3.2500 0.7500 2.5000 5.0000 8.4600 1.8400 1.5600
IEB-54 1 X 6 13,300 3.663 1.0000 2.0000 3.7500 0.8800 3.0000 6.0000 9.9700 2.0900 1.8100
IEB-55 1 X 9 13,300 4.225 1.0000 2.0000 3.7500 0.8800 4.0000 9.0000 12.9700 2.0900 1.8100
IEB-56 1-1/4 X 8 21,000 6.500 1.2500 2.5000 4.500 1.0000 4.0000 8.0000 12.7200 2.4700 2.2800
