Rigging Hardware

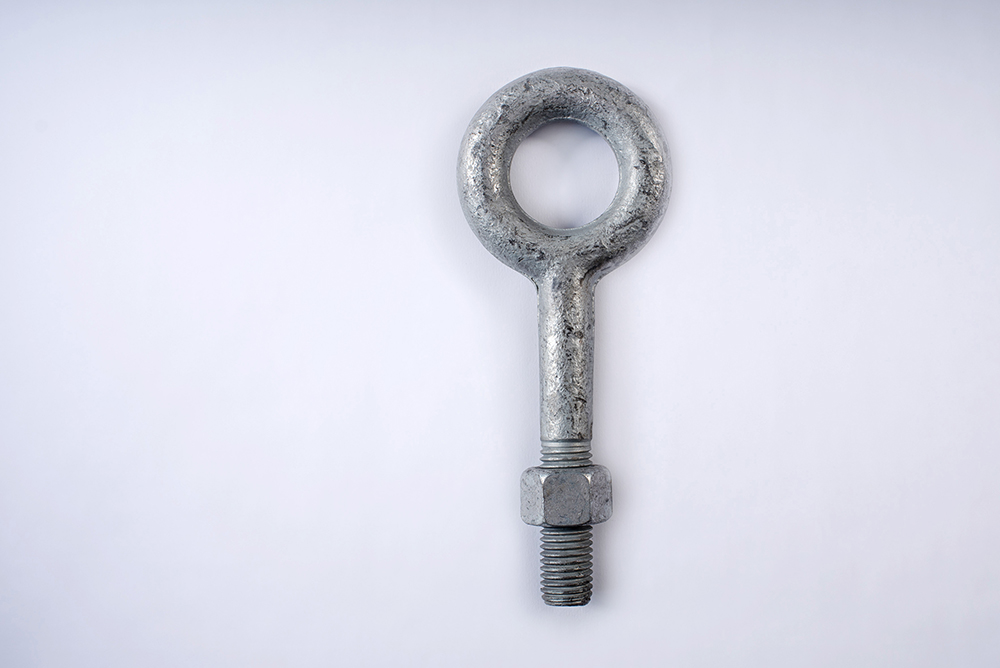

Regular Pattern Galvanized Eyebolt (Imported)

Catalog (SKU) Number: EYEBOLT IMP REG

  • Generally used as anchor points in rigging applications.
  • Galvanized to ASTM A-153 specifications.
  • Design factor is 5:1.
  • Made of drop forged carbon steel.
  • Other sizes, stainless steel, and domestic available upon request.

Request Product Information

Please fill out the form below and we will get back to you as soon as we can.

*
*
*
*
*

Download Spec Sheet
  • Product Specifications
  • Related Products

Product Specifications

REGULAR PATERN GALVANIZED EYEBOLT (IMPORTED)
PART NUMBER SIZE (IN) WORKING LOAD LIMIT (LBS) WEIGHT EACH (LBS) DIMENSIONS
A B C D E F G H
IEB-01 1/4 X 2 650 0.082 0.2500 0.5000 1.0000 0.2500 1.5000 2.0000 3.0600 0.5600
IEB-02 1/4 X 4 650 0.117 0.2500 0.5000 1.0000 0.2500 2.5000 4.0000 5.0600 0.5600
IEB-03 5/16 X 2-1/4 1,200 0.133 0.3100 0.6200 1.2500 0.3100 1.5000 2.2500 3.5600 0.6900
IEB-04 5/16 X 4 1,200 0.250 0.3100 0.6200 1.2500 0.3100 2.5000 4.0000 5.5600 0.6900
IEB-05 3/8 X 2-1/2 1,550 0.233 0.3800 0.7500 1.5000 0.3800 1.5000 2.5000 4.1200 0.8800
IEB-06 3/8 X 4-1/2 1,550 0.295 0.3800 0.7500 1.5000 0.3800 2.5000 4.5000 6.1200 0.8800
IEB-07 3/8 X 6 1,550 0.352 0.3800 0.7500 1.5000 0.3800 2.5000 6.0000 7.6200 0.8800
IEB-08 1/2 X 2 2,600 0.420 0.5000 1.0000 2.0000 0.5000 1.7000 1.7500 4.1325 1.1200
IEB-09 1/2 X 3-1/4 2,600 0.503 0.5000 1.0000 2.0000 0.5000 1.5000 3.2500 5.3800 1.1200
IEB-10 1/2 X 6 2,600 0.661 0.5000 1.0000 2.0000 0.5000 3.0000 6.0000 8.1200 1.1200
IEB-11 1/2 X 8 2,600 0.820 0.5000 1.0000 2.0000 0.5000 3.0000 8.0000 10.1200 1.1200
IEB-12 1/2 X 10 2,600 0.880 0.5000 1.0000 2.0000 0.5000 3.0000 10.0000 12.1200 1.1200
IEB-13 1/2 X 15 2,600 1.090 0.6200 1.2500 2.5000 0.6200 5.0500 15.0000 17.2500 1.1200
IEB-14 5/8 X 4 5,200 1.031 0.6200 1.2500 2.5000 0.6200 2.0000 4.0000 6.6900 1.4400
IEB-15 5/8 X 6 5,200 1.182 0.6200 1.2500 2.5000 0.6200 3.0000 6.0000 8.6900 1.4400
IEB-16 5/8 X 8 5,200 1.351 0.6200 1.2500 2.5000 0.6200 3.0000 8.0000 10.6900 1.4400
IEB-17 5/8 X 10 5,200 1.536 0.6200 1.2500 2.5000 0.6200 3.0000 10.0000 12.6900 1.4400
IEB-18 5/8 X 12 5,200 1.671 0.6200 1.2500 2.5000 0.6200 4.0000 12.0000 14.6900 1.4400
IEB-30 5/8 X 15 5,200 1.930 0.6200 1.2500 2.5000 0.6200 5.2500 15.0000 17.2500 1.4400
IEB-19 3/4 X 4-1/2 7,200 1.686 0.7500 1.5000 3.0000 0.7500 2.0000 4.5000 7.6900 1.6900
IEB-20 3/4 X 6 7,200 1.845 0.7500 1.5000 3.0000 0.7500 3.0000 6.0000 9.1900 1.6900
IEB-21 3/4 X 8 7,200 2.079 0.7500 1.5000 3.0000 0.7500 3.0000 8.0000 11.1900 1.6900
IEB-22 3/4 X 10 7,200 2.350 0.7500 1.5000 3.0000 0.7500 3.0000 10.0000 13.1900 1.6900
IEB-23 3/4 X 12 7,200 2.575 0.7500 1.5000 3.0000 0.7500 4.0000 12.0000 15.1900 1.6900
IEB-24 3/4 X 15 7,200 2.980 0.7500 1.5000 3.0000 0.7500 5.0000 15.0000 18.1900 1.6900
IEB-25 1 X 6 13,300 4.210 1.0000 2.0000 4.0000 1.0000 3.0000 6.0000 10.3100 2.3100
IEB-26 1 X 9 13,300 4.685 1.0000 2.0000 4.0000 1.0000 4.0000 9.0000 13.3100 2.3100
IEB-27 1 X 12 13,300 5.400 1.0000 2.0000 4.0000 1.0000 4.0000 12.0000 16.3100 2.3100
